RE-RELEASE: MC3 MR98 Tri-Link Suspension System for Kyosho™ MR03/ PNR 2.5 Platform

The MC3 "MR98" tri-link suspension system is a pure-bred race winning setup for Kyosho's™ MR03 Mini-Z™ Chassis or the PNR 2.5 chassis from PN Racing™.

This is a re-release of our no non-sense hardcore racing system which has been used by many racers to win AAA touring classes.

Note: This chassis has not been officially authorized for racing in any PNWC races. Please check with your race association/ club before purchasing or using.

This system requires a MR-03 (brushless) or PNR 2.5 chassis. it requires the PN double a-arm system system (MR3080) to be used and a brushless motor. This means this kit is not compatible with a MR03 RWD kit which is brushed.

While it can work with Jomurema GT01 hardbody and likely the PN Racing C9 hardbody, it is meant to be run with a polycarbonate (aka Lexan) body.

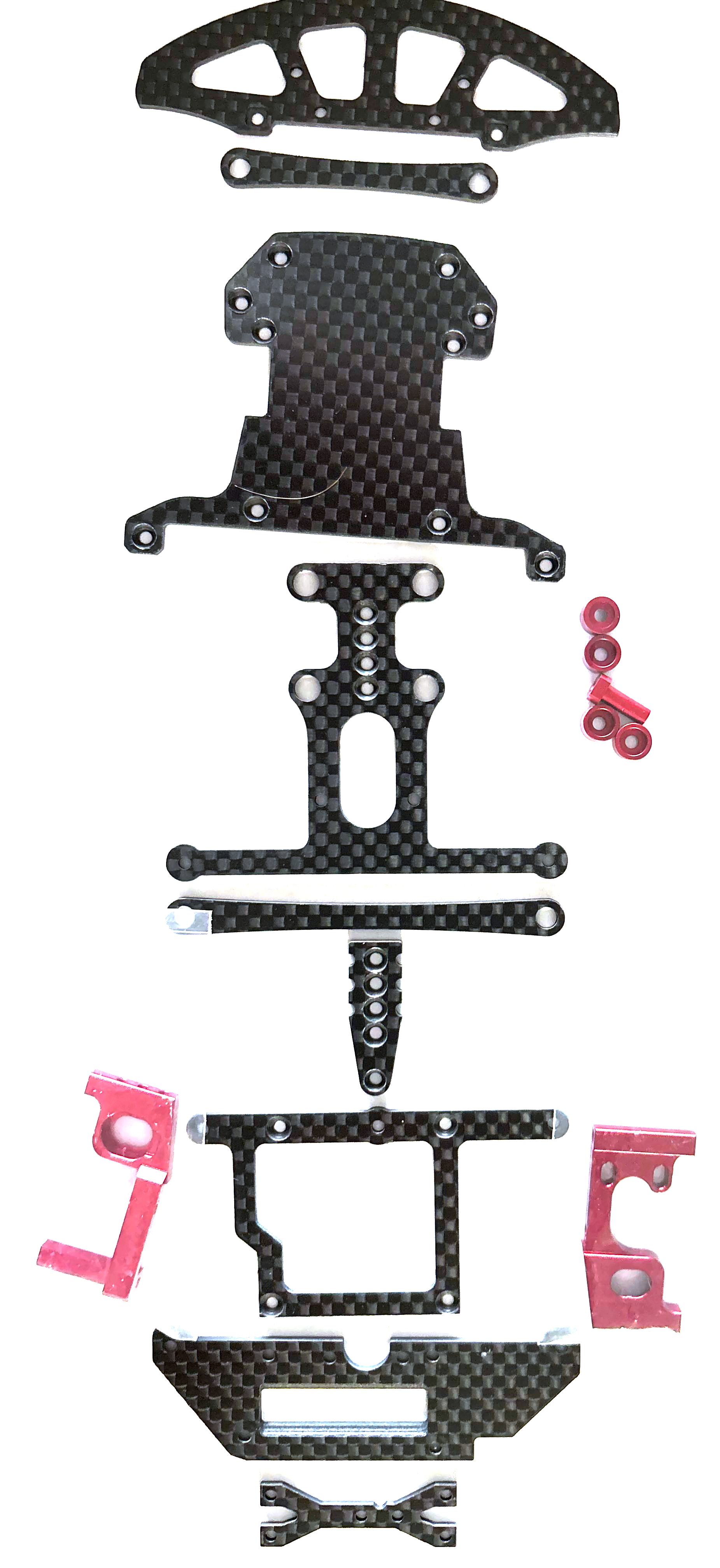

This re-release comes with only the carbon and anodized alloy parts.

You will need to add necessary hardware to make this system complete. You will be emailed a list of needed parts to complete your build once you check out.

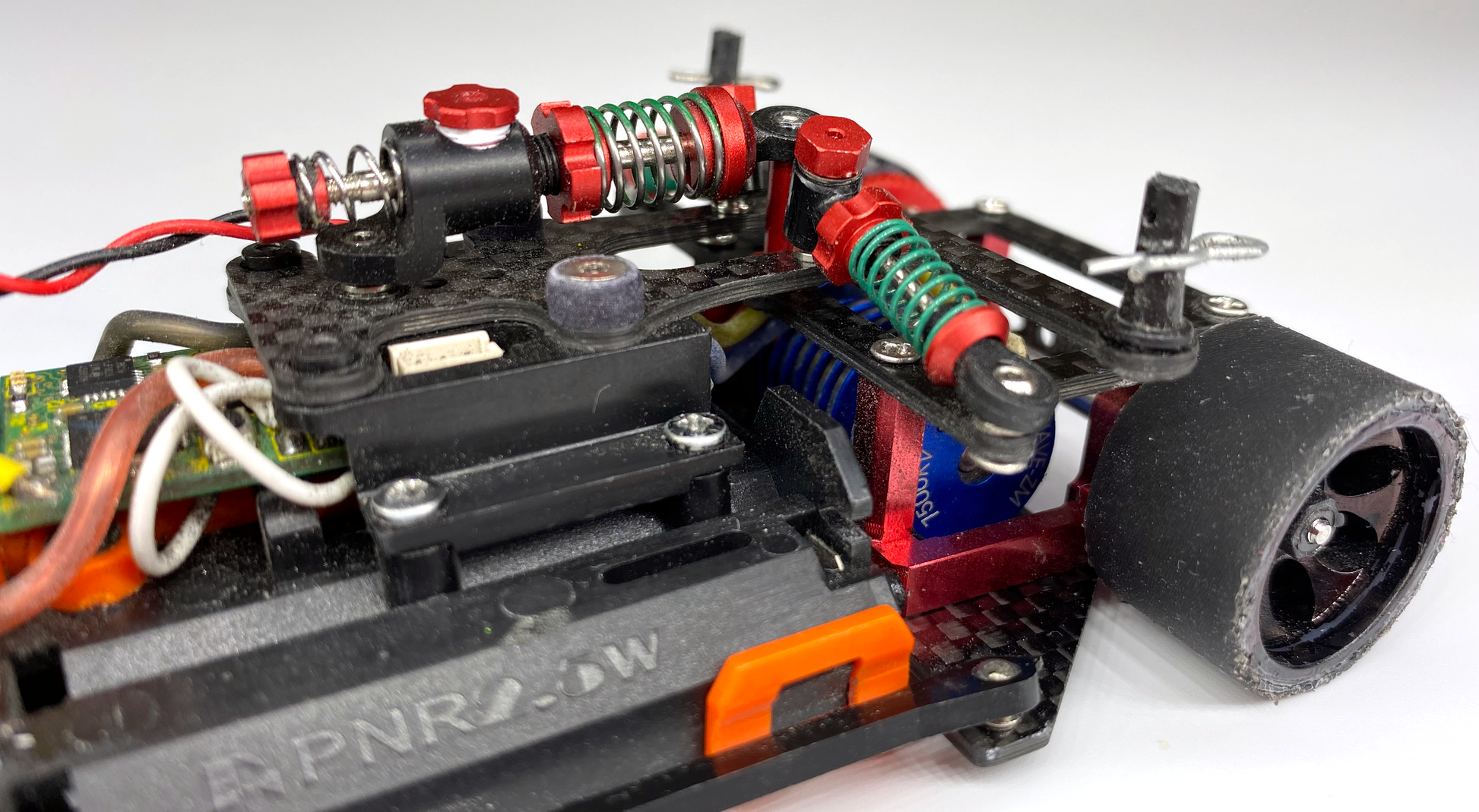

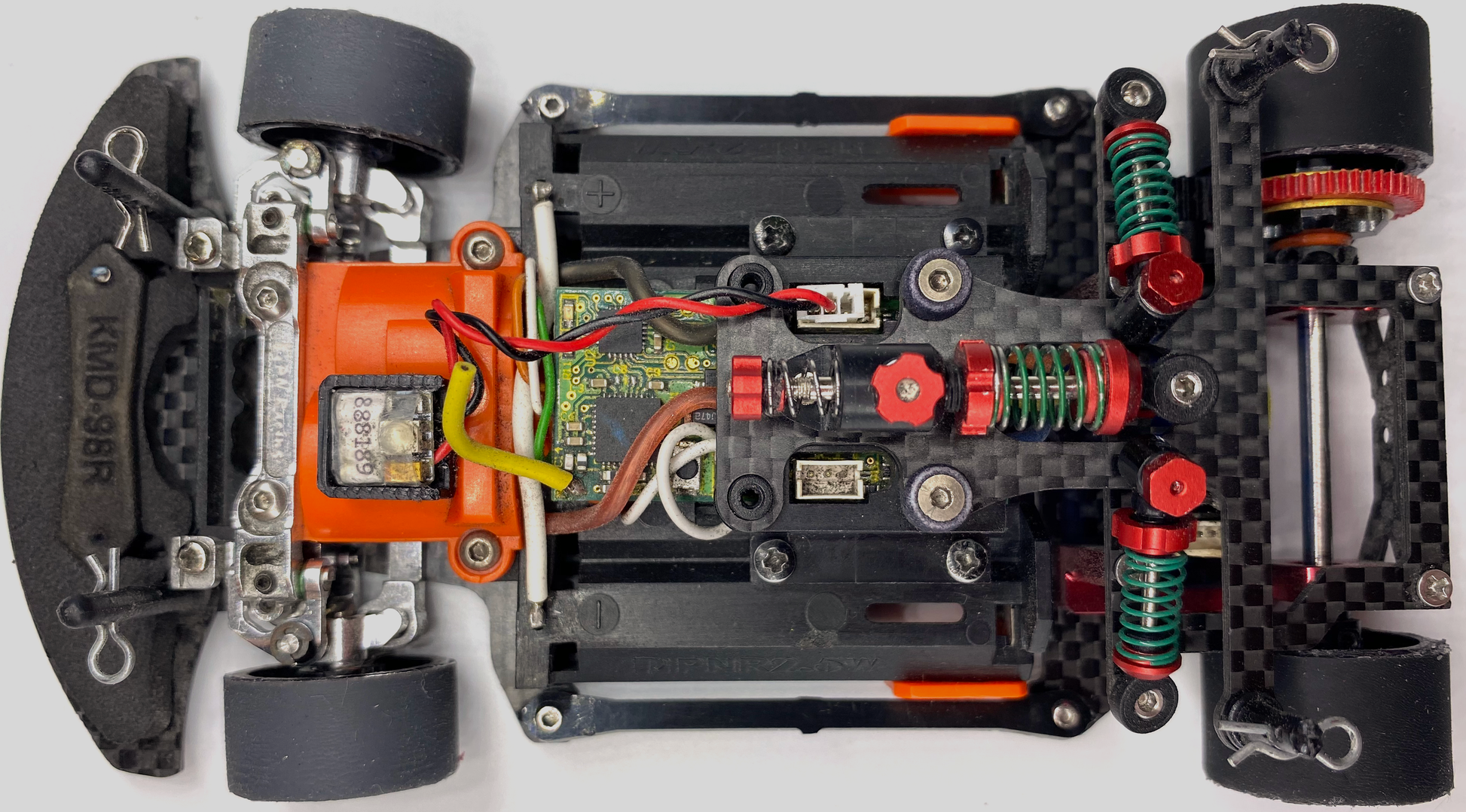

Consider using MC3WLS's magnetic center and side shocks to go with an optimal build.

All plastics parts are now free downloads for you to 3D print on your own! You will get sent a link to the download files once your order is fulfilled.

Do not print using PLA as it is too weak. We recommend printing in ABS with a 0.2mm layer height and 100% infill.

Due to the nature of 3D printing, we incorporated some adjustability into the 3D versions of the plastic parts. Use a M1 screw to adjust tightness/fit. The version of the parts with slots are name as such. These are easily available on online through sites like Amazon or Ali Express. Suitable size would be M1 x 5 or 6mm.

A 3.5mm ball end reamer would be helpful to size the holes of the 3D printed parts for a more precise fit.

The original build video below:

Kyosho™ and Mini-Z™ are wholly owned by Kyosho Corporation and are not associated with Mini-Car Club of Canada (MC3) in anyway.

PN Racing™ is wholly owned by PN Racing and are not associated with Mini-Car Club of Canada (MC3) in anyway other than MC3 being an authorized reseller of PN Racing products in Canada.
