FUTABA T-FHSS 4CH RX WITH PN 18A BL ESC

FUTABA T-FHSS 4CH RX WITH PN 18A BL ESC

Regular price $53.00 USD
Regular price $74.00 USD Sale price $53.00 USD
Sale Sold out
Shipping calculated at checkout.
This is a micro Sensor-less Brushless ESC integrated with FUTABA T-FHSS Receiver. It could be used for 1/28 1/24 and 1/18 2WD or AWD micro RC car.

FUTABA T-FHSS Receiver Features:

Compatible Transmitters:
Futaba 7PX 4PX 7XC 4GRS 4PV 4PM 4PLS Transmitter Two-way High Speed Receiver
4 Channel high speed servo output

FUTABA T-FHSS Receiver Specification:
PWM Channels: 4
RF: 2.4GHz
2.4G Protocol: FUTABA T-FHSS
Distance: >50m(ground)
Antenna: Single Antenna(32mm)
RSSI: Yes
Data Output: PWM

ESC Features:
•Specially designed for RC car and truck, with excellent starting up, acceleration and linearity features
•Compatible with sensor-less brushless motor
•3running modes suitable for different applications
•Forward with brake mode / Forward-Backward with Brake mode / Forward-Backward no Brake Mode
•4 steps of maximum reverse force adjustment
•Proportional ABS brake function with 4 steps of maximum brake force adjustment, 8 steps of drag brake force adjustment and 4 steps of initial brake force adjustment
•9 start modes from "Short" to "Smooth" to be suitable for different chassis, tires and tracks
• 7 multiple protection features: Low voltage cut-off protection for lithium or nickel battery / Over-heat protection / Throttle signal loss protection / Motor blocked protection
• 8 steps of timing adjustment

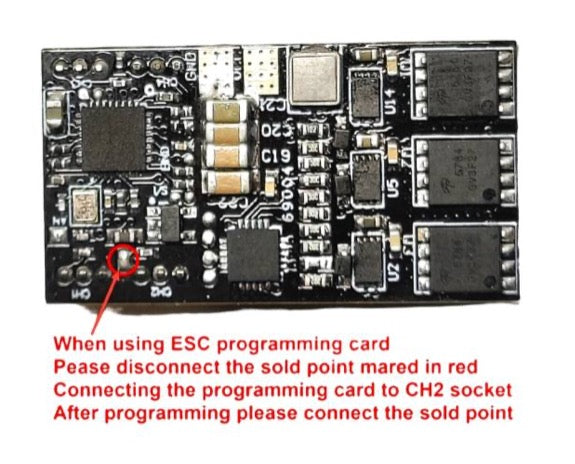

• User programmable. Supported as: The "SET" button on the ESC, the digital LED Programmer

ESC Specification:
Continues Current: 18A
Burst Current: 48A
Resistance: 0.01 ohm
Battery: 2S Li-Po/Li-Ion or 4-6 cells NiMH
BEC Output: 5V/3A
Size: 37mm x 20 mm x 7mm

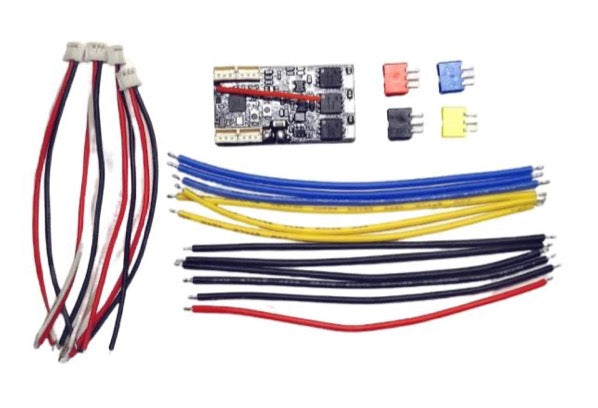

Package Included:
1 x RX-ESC
4 x 1.5mm 3P JST plug with high quality silicon cable
12 x 100mm high quality silicon cable (3 blue, 3 yellow, 5 black, 1 red)
4 x PH2.0 3P plug (for battery connection)
