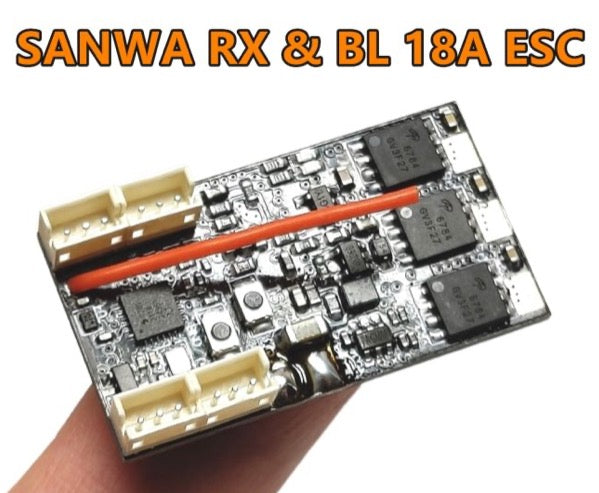

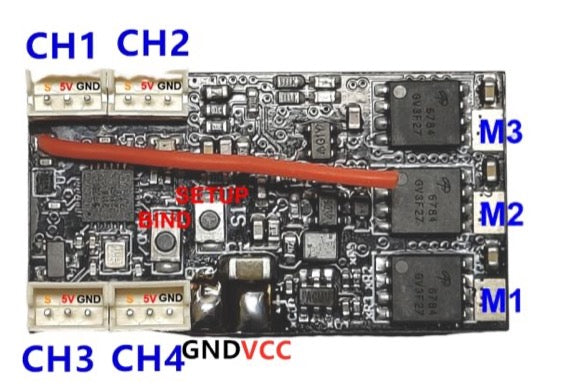

SANWA 4CH RX WITH PN 18A BL ESC

This is a micro Sensor-less Brushless ESC integrated with SANWA Receiver. It could be used for 1/28 1/24 and 1/18 2WD or AWD micro RC car.

SANWA Receiver Features:
Compatible Transmitters:
Sanwa M17/Sanwa M12S/Sanwa M12/Sanwa MT44/Sanwa MT4S/Sanwa M11X/Sanwa MT-S
4 Channel high speed servo output

SANWA Receiver Specification:
PWM Channels: 4
RF: 2.4GHz
2.4G Protocol: FH4
Distance: >50m(ground)
Antenna: Single Antenna(32mm)
RSSI: Yes
Data Output: PWM

ESC Features:
•Specially designed for RC car and truck, with excellent starting up, acceleration and linearity features
•Compatible with sensor-less brushless motor
•3running modes suitable for different applications
•Forward with brake mode / Forward-Backward with Brake mode / Forward-Backward no Brake Mode
•4 steps of maximum reverse force adjustment
•Proportional ABS brake function with 4 steps of maximum brake force adjustment, 8 steps of drag brake force adjustment and 4 steps of initial brake force adjustment
•9 start modes from "Short" to "Smooth" to be suitable for different chassis, tires and tracks
• 7 multiple protection features: Low voltage cut-off protection for lithium or nickel battery / Over-heat protection / Throttle signal loss protection / Motor blocked protection
• 8 steps of timing adjustment

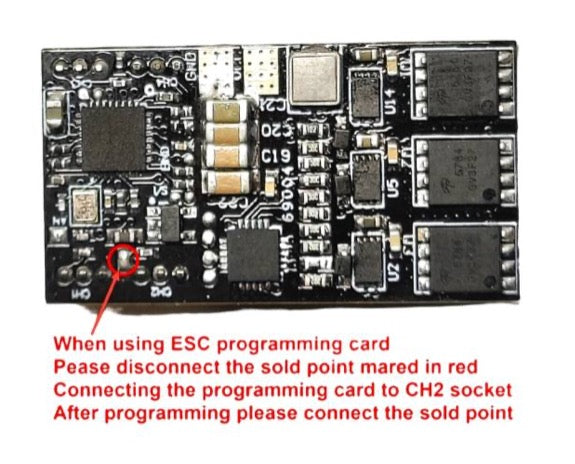

• User programmable. Supported as: The "SET" button on the ESC, the digital LED Programmer

ESC Specification:
Continues Current: 18A
Burst Current: 48A
Resistance: 0.01 ohm
Battery: 2S Li-Po/Li-Ion or 4-6 cells NiMH
BEC Output: 5V/3A
Size: 37mm x 20 mm x 7mm

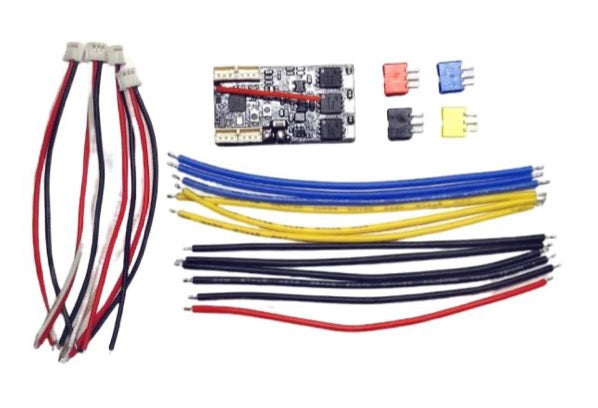

Package Included:
1 x RX-ESC
4 x 1.5mm 3P JST plug with high quality silicon cable
12 x 100mm high quality silicon cable (3 blue, 3 yellow, 5 black, 1 red)
4 x PH2.0 3P plug (for battery connection)
