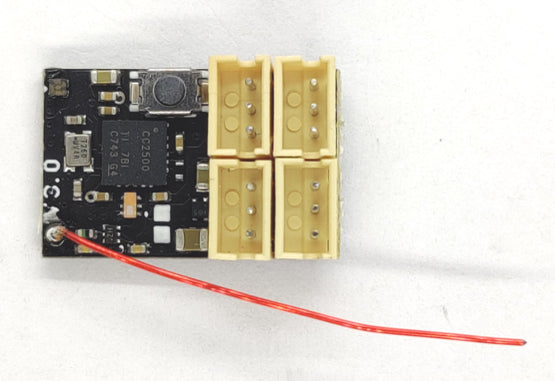

FUTABA S-FHSS NANO V2 4CH GYRO RX

added GYRO function

(1.5mm JST)
19mm x 12mm

Compatible with:

FUTABA 7PX / FUTABA 7PXR
FUTABA 4PX / FUTABA 4PXR
FUTABA 4PV / FUTABA 3PV
FUTABA 4PLS / FUTABA 4PL
FUTABA 4PM
FUTABA 7XC / FUTABA 4GRS

Binding:

1. Power on the receiver. Press the BIND button until the blue LED flashing quickly(BIND mode)

2. Put the transmitter into bind mode. The receiver’s led will flash slowly when the binding is successful.

3. Disconnect receiver’s power and reconnects the power cable to the receiver. Now it should work normally.



Internal GYRO sensitivity setup:

The CH3 signal is used to set up the GYRO sensitivity and servo direction. When the CH3 signal is less than 1.4ms, the servo direction is left, the gyro sensitivity is changed from 0% to 100% according to the CH3 the signal from 1.4ms to 1ms. When the CH3 signal is greater than 1.6ms, the servo direction is right, the gyro sensitivity is changed from 0% to 100% according to the CH3 signal from 1.6ms to 2ms. When the CH3 signal is between 1.4ms to 1.6ms, the internal GYRO function is disabled.



CH1 output End Point setup:

1. Change CH3 signal to middle point(1.4ms to 16.ms)to disable the GYRO function. The red and blue LED will be both off.

2. Turn the steering to the left endpoint you want, press the BIND button to record the left endpoint, the red led will flash about 2 seconds then turn off.

3. Turn the steering to the right endpoint you want, press the BIND button to record the right endpoint, the red led will flash about 2 seconds then turn off.
